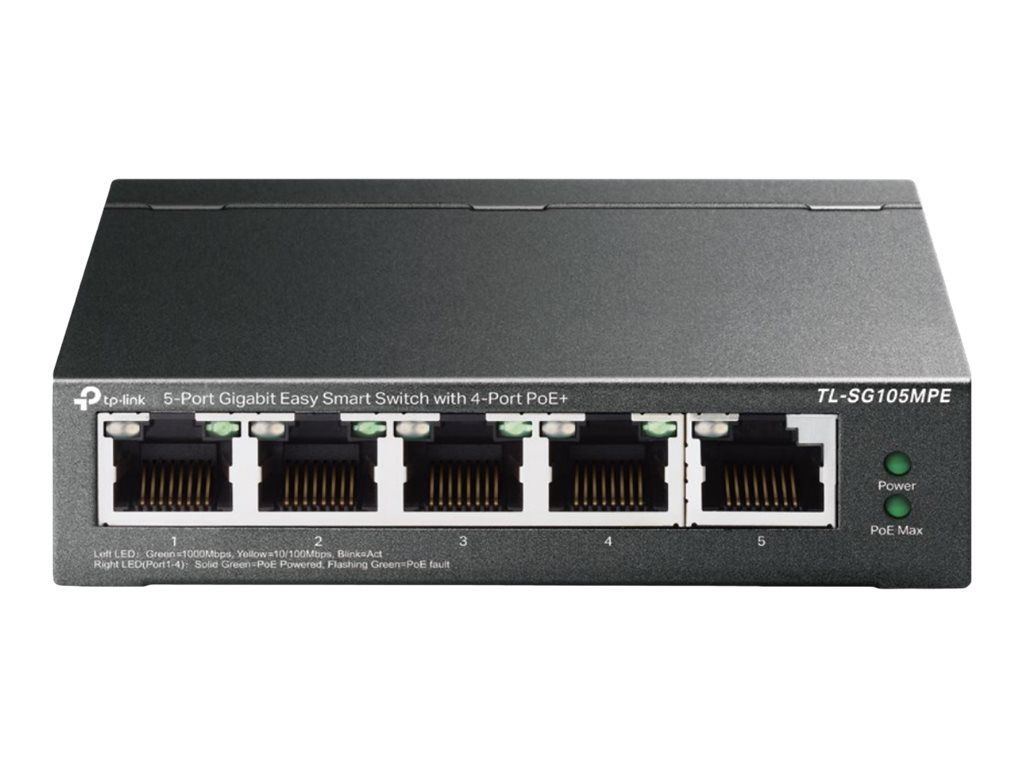

TP-Link TL-SG105MPE V1.60 - switch - 5 ports
- English
The TL-SG105MPE is a 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch. It is designed especially for small businesses that require simple network management and PoE function. The TL-SG105MPE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105MPE can improve security and meet more network segmentation requirements.
| Product Description | TP-Link TL-SG105MPE V1.60 - switch - 5 ports |
| Device Type | Switch - 5 ports |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Forwarding performance: 7.44 Mpps |
| Capacity | Virtual interfaces (VLANs): 32 |
| Jumbo Frame Support | 16KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, QoS, fanless, loop prevention, Cable Diagnostics Function, port mirroring, Storm Control |
| Compliant Standards | IEEE 802.3af, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at, IEEE 802.3q, IEEE 802.3i |
| Power | (50/60 Hz) |
| Dimensions (WxDxH) | 9.98 cm x 9.8 cm x 2.5 cm |
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802. 3af/at compliant Powered Devices (PDs).
Effective management
TL-SG105MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105MPE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802. 1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105MPE supports MTU VLAN, port-based VLAN and 802. 1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices. TL-SG105MPE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to use
TL-SG105MPE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
| Enclosure Type | Desktop
|
| Subtype | Gigabit Ethernet
|
| Device Type | Switch - 5 ports
|
| Ports | 5 x 10/100/1000
|
| Status Indicators | Port transmission speed, power, link/activity
|
| Jumbo Frame Support | 16KB
|
| Capacity | Virtual interfaces (VLANs): 32
|
| Performance | Forwarding performance: 7.44 Mpps
|
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, QoS, fanless, loop prevention, Cable Diagnostics Function, port mirroring, Storm Control
|
| Compliant Standards | IEEE 802.3af, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at, IEEE 802.3q, IEEE 802.3i
|
| Interfaces | 5 x 1000Base-T RJ-45
|
| Compliant Standards | FCC
|
| Power Device | External power adapter
|
| Voltage Required | (50/60 Hz)
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Max Storage Temperature | 70 °C
|
| Min Storage Temperature | -40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Humidity Range Storage | 5 - 95% (non-condensing)
|
| Height | 2.5 cm
|
| Depth | 9.8 cm
|
