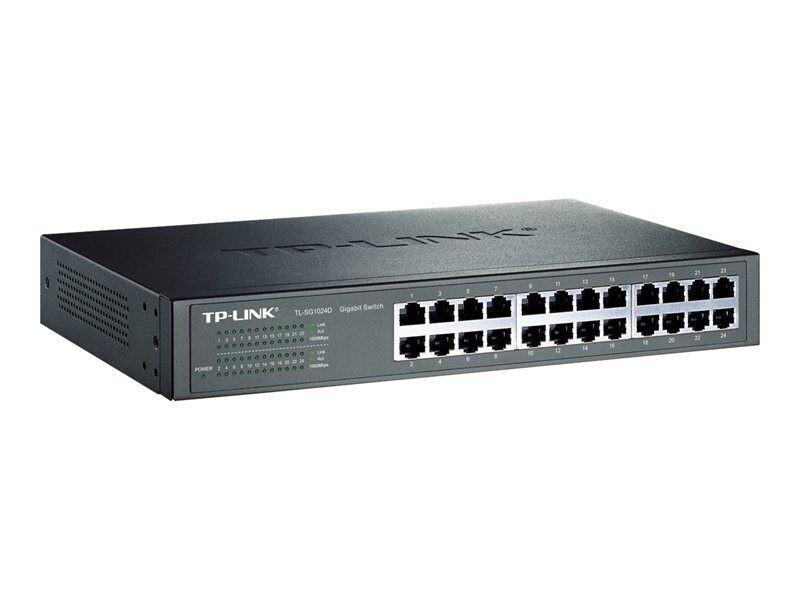

TP-Link TL-SG1024D - switch - 24 ports - rack-mountable
€110.00
Sold out
Sold out
Product Details
Product Description
- English
The TL-SG1024D Gigabit Ethernet switch provides you with a high-performance,easy-to-use,seamless and standard upgrade to improve your network to 1000 Mbps network. All 24 ports support auto MDI / MDIX,no need to worry about the cable type,simply Plug and Play. Moreover,with the advanced energy-efficient technology,the TL-SG1024D can save a big amount of power consumption,making it an eco-friendly solution for your business network.
Main Specification
| Product Description | TP-Link TL-SG1024D - switch - 24 ports - rack-mountable |
| Device Type | Switch - 24 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity:48 Gbps ¦Forwarding performance:35.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Flow control,full duplex capability,auto-negotiation,auto-uplink (auto MDI/MDI-X),store and forward,fanless |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3i,IEEE 802.3ab,IEEE 802.3x |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44 cm x 18 cm x 4.4 cm |
Associated Documents
- TD SYNNEX Product Data Sheet - 24 port Desktop/Rackmount Gigabit Switch(TL-SG1024D).pdf
- Product Data Sheet - Brochure - 24 port Desktop/Rackmount Gigabit Switch(TL-SG1024D).pdf
- Quick Start Guide - 24 port Desktop/Rackmount Gigabit Switch(TL-SG1024D).pdf
Product Features
- TP-LINK green technology
- This Gigabit switch features the advanced energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network.
- High performance
- All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10 Mbps and 100 Mbps Ethernet devices. Featuring non-blocking switching architecture,TL-SG1024D forwards and filters packets at full wire speed for maximum throughput. With Jumbo frame,the performance of large files transfers is improved significantly. The TL-SG1024D is a perfect choice to update your network to Gigabit while protecting your previous investment properly.
- Easy to use
- The auto features of this Gigabit switch make installation Plug and Play and hassle-free. No configuring is required. Auto MDI / MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10,100,or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
What is in the box?
- TP-Link TL-SG1024D
- External power adapter,rubber feet
- Rack mounting kit
Extended Specification collapse
| General | |
|---|---|
| Device Type | Switch - 24 ports |
| Enclosure Type | Desktop,rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity:48 Gbps Forwarding performance:35.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Flow control,full duplex capability,auto-negotiation,auto-uplink (auto MDI/MDI-X),store and forward,fanless |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3i,IEEE 802.3ab,IEEE 802.3x |
| Status Indicators | Power,100M device connected,1000M device connected,link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 1000Base-T RJ-45 |
| Power | |
|---|---|
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
|---|---|
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC,RoHS |
| Dimensions &Weight | |
|---|---|
| Width | 44 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
