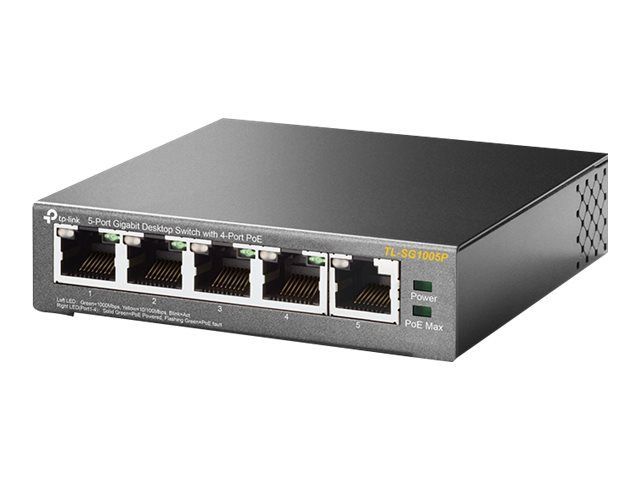

TP-Link TL-SG1005P-PD V1
€69.00
In stock: 2 available
Product Details
Main Specification
| Product Description | TP-Link TL-SG1005P-PD V1 - switch - 5 ports - unmanaged |
| Device Type | Switch - 5 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 66 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mbps |
| MAC Address Table Size | 2K entries |
| Routing Protocol | IGMP |
| Features | 250 m Long Reach, PoE Auto Recovery, metal housing, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, flow control, IGMP snooping, QoS |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Dimensions (WxDxH) | 15.8 cm x 10.1 cm x 2.5 cm |
Associated Documents
Extended Specification
General
| Subtype | Gigabit Ethernet
|
| MAC Address Table Size | 2K entries
|
| Routing Protocol | IGMP
|
| PoE Budget | 66 W
|
| Device Type | Switch - 5 ports - unmanaged
|
| Enclosure Type | Desktop, wall-mountable
|
| Power Over Ethernet (PoE) | PoE++
|
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++)
|
| Performance | Switching capacity: 10 Gbps
Forwarding rate: 7.44 Mbps
|
| Status Indicators | Power, link/activity, PoE
|
| Features | 250 m Long Reach, PoE Auto Recovery, metal housing, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, flow control, IGMP snooping, QoS
|
| Compliant Standards | IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
|
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T RJ-45 PoE++
4 x 1000Base-T RJ-45 PoE+
|
Miscellaneous
| Compliant Standards | Plug and Play, FCC, RoHS
|
Power
| Power Device | Power injector (not included)
|
Environmental Parameters
| Max Operating Temperature | 70 °C
|
| Max Storage Temperature | 70 °C
|
| Min Storage Temperature | -40 °C
|
| Min Operating Temperature | -30 °C
|
| Humidity Range Operating | 10 - 90% RH (non-condensing)
|
| Humidity Range Storage | 5 - 90% RH (non-condensing)
|
Dimensions & Weight
| Width | 15.8 cm
|
| Height | 2.5 cm
|
| Depth | 10.1 cm
|
