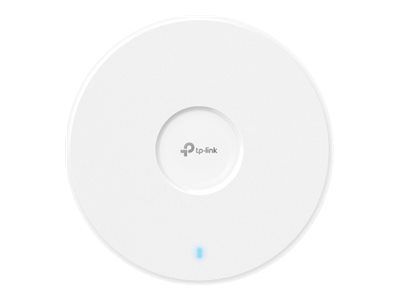

TP-Link Omada EAP723 V1 - radio access point - Wi-Fi 7 - cloud-managed
The TP-Link Omada EAP723 V1 offers powerful wireless connectivity, equipped with features to meet the demands of modern environments. With a data transfer rate of 3.6 Gbps and support for up to 4000 connected devices, this wireless access point ensures stable and efficient performance for both personal and guest networks. It is versatile in installation, allowing wall or ceiling mounting, making it suitable for a variety of settings. The device operates smoothly in a range of conditions, with an operating temperature between 0°C and 40°C and humidity levels from 10% to 90% (non-condensing).
| Product Description | TP-Link Omada EAP723 V1 - radio access point - Wi-Fi 7 - cloud-managed |
| Device Type | Radio access point |
| Form Factor | Wall / ceiling mountable |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 2882 Mbps ¦ Channel bandwidth: 160 MHz |
| Capacity | Guest SSIDs: up to 16 ¦ Connected devices: 250+ ¦ Maximum MAC filters: 4000 |
| Included Accessories | Wall/ceiling mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 16 cm x 16 cm x 3.67 cm |
Robust connectivity options
The EAP723 V1 supports multiple data link protocols, including IEEE 802. 11ax (Wi-Fi 6) and IEEE 802. 11be (Wi-Fi 7), ensuring compatibility with a wide range of devices and maximizing network performance.
Enhanced security features
Equipped with encryption algorithms such as WPA3 and WPA2, this access point provides secure connections, ensuring data safety for both personal and guest users.
Wide coverage area
The access point delivers coverage of up to 140 sq. m, making it suitable for medium to large spaces where reliable wireless access is essential.
Efficient management capabilities
The integration of features like load balancing, VLAN support, and seamless roaming enhances user experience, providing a stable and efficient network for connected devices.
Versatile installation options
With the ability to be wall or ceiling mounted, the EAP723 V1 can fit various environment setups, providing flexibility in deployment and ensuring optimal performance.
TP-Link Omada EAP723 V1
Wall/ceiling mounting kit
| Width | 16 cm
|
| Depth | 16 cm
|
| Device Type | Radio access point
|
| Height | 3.67 cm
|
| Interfaces | 1 x 100/1000/2500Base-T (PoE++) - RJ-45
|
| Connectivity Technology | Wireless
|
| Cloud-Managed | Yes
|
| Data Transfer Rate | 3.6 Gbps
|
| Status Indicators | Status
|
| Routing Protocol | Static IP routing
|
| Frequency Band | 2.4 GHz, 5 GHz
|
| Max Coverage Area | Up to 140 sq.m
|
| Spread Spectrum Method | OFDMA
|
| Form Factor | Wall / ceiling mountable
|
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
|
| Line Coding Format | 4096 QAM, OFDMA
|
| Wi-Fi Rating | BE3600
|
| Performance | Maximum data rate (2.4 GHz): 688 Mbps
Maximum data rate (5 GHz): 2882 Mbps
Channel bandwidth: 160 MHz
|
| Authentication Method | Radio Service Set ID (SSID), RADIUS
|
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
|
| Remote Management Protocol | SNMP, SNMP 2c, SNMP 3
|
| Capacity | Guest SSIDs: up to 16
Connected devices: 250+
Maximum MAC filters: 4000
|
| Features | Multiple Resource Unit (MRU), Omada Mesh technology, seamless roaming, reset button, Guest Network, rogue AP detection, MU-MIMO technology, Captive Portal, load balancing, band steering, beamforming technology, Wireless Scheduler, schedule reboot, Quality of Service (QoS), rate limit, MAC address filtering, Access Control List (ACL) support, client isolation, VLAN support, e-mail notification, LED control
|
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3at, Wi-Fi CERTIFIED 7
|
| Included Accessories | Wall/ceiling mounting kit
|
| Compliant Standards | FCC, RoHS, IC
|
| Power Over Ethernet (PoE) Supported | PoE+
|
| Power Device | External power adapter / power injector (not included)
|
| Software Included | Omada Controller
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Antenna | Internal
|
| Antenna Qty | 4
|
