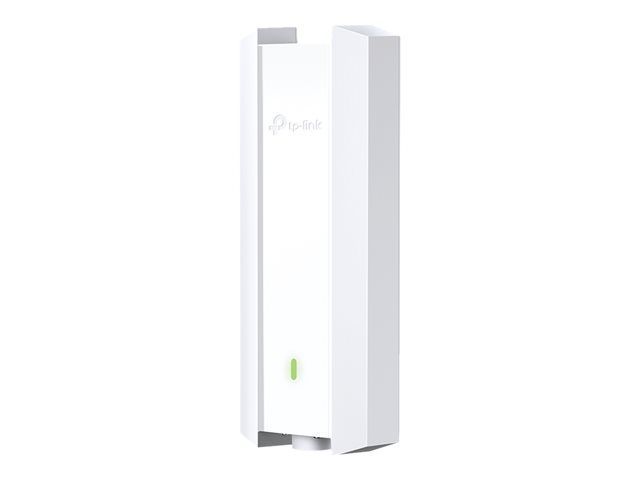

TP-Link Omada EAP610-Outdoor - radio access point - Wi-Fi 6 - cloud-managed
Powered by the Wi-Fi 6 technology, the AX1800 indoor/outdoor Wi-Fi 6 Access Point EAP610-Outdoor delivers Wi-Fi speeds of up to 1.8 Gbps, ideal for use in outdoor environments, such as outdoor swimming pools, cafes, and amusement parks.
| Product Description | TP-Link Omada EAP610-Outdoor - radio access point - Wi-Fi 6 - cloud-managed |
| Device Type | Radio access point |
| Form Factor | Wall / pole mountable - outdoor, indoor |
| Data Link Protocol | 802.11ax, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 |
| Included Accessories | Pole/wall mount kit, passive PoE adapter, waterproof kits, waterproof aerial |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 28.04 cm x 10.65 cm x 5.68 cm |
Dual-band Wi-Fi 6 connectivity
Powered by the Wi-Fi 6 technology, the AP delivers speeds of up to 1. 8 Gbps, providing higher data rates on both 5 GHz and 2. 4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.
Long-range coverage
Professional antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2. 4 GHz band and 300 meters over 5 GHz band.
Connect numerous devices
OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.
Easy pairing, less wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your Wi-Fi signal further and more flexibly to hard-to-wire areas.
Optimized network performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always stay smooth with fast roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
IP67 weatherproof enclosure for outdoor environments
EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.
Multiple PoE options for easy installation
The AP supports both 802. 3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.
| Device Type | Radio access point
|
| Ruggedized Design | Outdoor, indoor
|
| Height | 5.68 cm
|
| Depth | 10.65 cm
|
| Width | 28.04 cm
|
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45
|
| Connectivity Technology | Wireless
|
| Cloud-Managed | Yes
|
| Status Indicators | Status
|
| Authentication Method | Secure Shell (SSH), Radio Service Set ID (SSID)
|
| Frequency Band | 2.4 GHz, 5 GHz
|
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, SSH
|
| Capacity | Maximum number of configured SSIDs: 16
|
| Line Coding Format | OFDM, 1024 QAM, OFDMA
|
| Wi-Fi Rating | AX1800
|
| Performance | Maximum data rate (2.4 GHz): 574 Mbps
Maximum data rate (5 GHz): 1201 Mbps
|
| Spread Spectrum Method | OFDM, OFDMA
|
| Form Factor | Wall / pole mountable
|
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
| Features | Syslog support, E-mail alert, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, weatherproof, rogue access point detection, Captive Portal, 15KV ESD Protector, 802.1x authentication, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, Fast Roaming, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), dustproof, waterproof, 6KV lightning protection, schedule reboot, load balance network mode, Omada Mesh technology
|
| Data Link Protocol | 802.11ax, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
|
| Compliant Standards | FCC, RoHS, IP67
|
| Included Accessories | Pole/wall mount kit, passive PoE adapter, waterproof kits, waterproof aerial
|
| Power Over Ethernet (PoE) Supported | PoE+
|
| Max Operating Temperature | 70 °C
|
| Min Operating Temperature | -30 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
