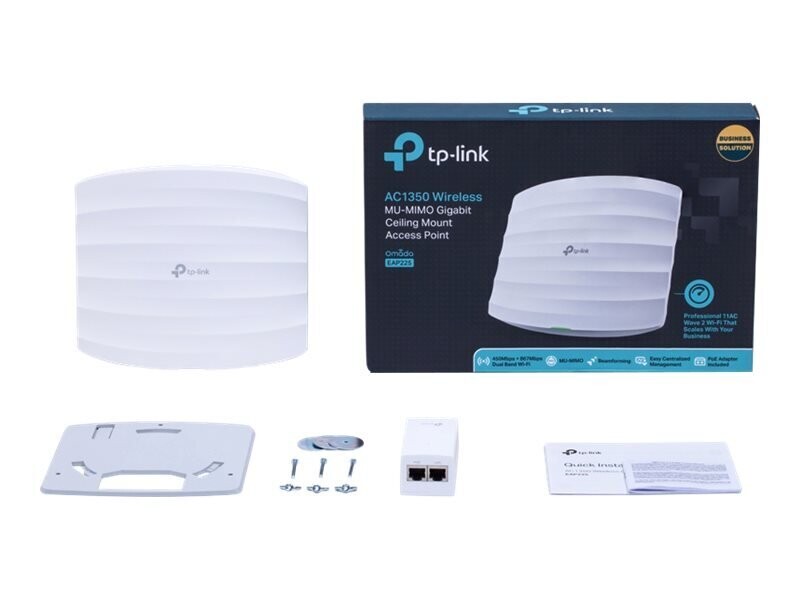

TP-Link Omada EAP225
€99.00
Sold out
Sold out
Product Details
Product Description
- English
Omada provides a business-class wireless network solution that's flexible,manageable,secure,and easy-to-deploy. Omada EAPs feature captive portal and advanced RF management functions,which make them ideal for demanding,high-traffic environments such as campuses,hotels,malls and offices.
Main Specification
| Product Description | TP-Link Omada EAP225 - v3 - radio access point - Wi-Fi 5 |
| Device Type | Radio access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b,IEEE 802.11a,IEEE 802.11g,IEEE 802.11n,IEEE 802.11ac |
| Frequency Band | 2.4 GHz,5 GHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz):8 ¦ Maximum number of configured SSIDs (5 Ghz):8 |
| Included Accessories | Wall mounting kit,ceiling mounting kit |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Dimensions (WxDxH) | 20.54 cm x 18.16 cm x 3.74 cm |
| Manufacturer Warranty | Limited lifetime warranty |
Associated Documents
Extended Specification collapse
| General | |
|---|---|
| Device Type | Radio access point |
| Width | 20.54 cm |
| Depth | 18.16 cm |
| Height | 3.74 cm |
| Networking | |
|---|---|
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b,IEEE 802.11a,IEEE 802.11g,IEEE 802.11n,IEEE 802.11ac |
| Remote Management Protocol | SNMP 1,Telnet,SNMP 2c,HTTP,HTTPS,CLI |
| Frequency Band | 2.4 GHz,5 GHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz):8 Maximum number of configured SSIDs (5 Ghz):8 |
| Wi-Fi Rating | AC1350 |
| Features | Load balancing,VLAN support,Syslog support,manageable,E-mail alert,MAC address filtering,wall mountable,Wi-Fi Multimedia (WMM) support,Access Control List (ACL) support,Quality of Service (QoS),Multiple SSID support,reset button,rogue access point detection,ceiling mountable,Captive Portal,security lock slot (cable lock sold separately),Watch Dog Timer (WDT),MU-MIMO technology,beamforming technology,band steering,rate limit,Wireless Scheduler,Airtime Fairness |
| Encryption Algorithm | WPA-PSK,WPA2-PSK,WPA-Enterprise,WPA2-Enterprise,WEP |
| Compliant Standards | IEEE 802.11b,IEEE 802.11a,IEEE 802.3af,IEEE 802.11g,IEEE 802.1x,IEEE 802.11n |
| Aerial | |
|---|---|
| Antenna | Internal |
| Antenna Qty | 5 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
|---|---|
| Included Accessories | Wall mounting kit,ceiling mounting kit |
| Compliant Standards | FCC,RoHS |
| Power | |
|---|---|
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Power Consumption Operational | 12.6 Watt |
| Software / System Requirements | |
|---|---|
| Software Included | Omada Controller |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Manufacturer Warranty | |
|---|---|
| Service &Support | Limited warranty - lifetime |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
