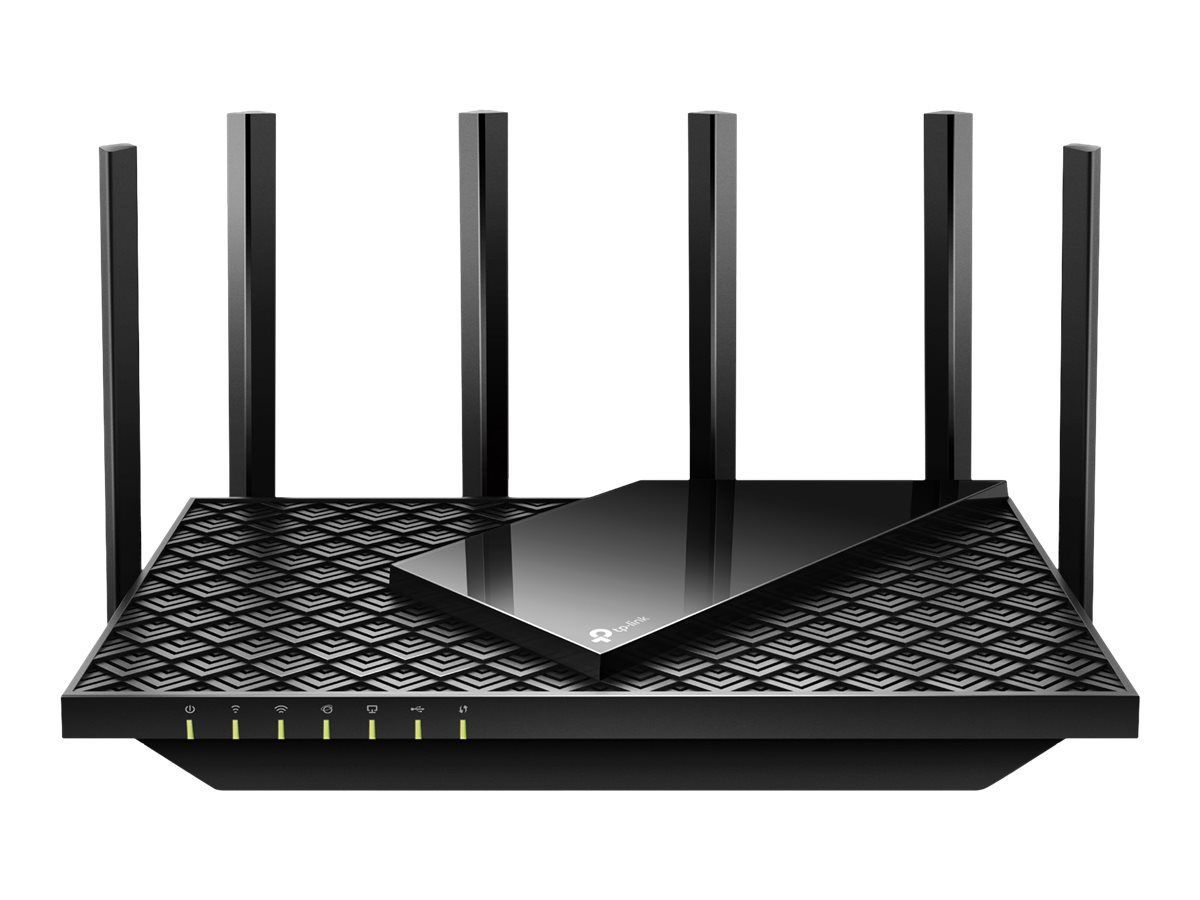

TP-Link Archer AX73 - V1 - wireless router - Wi-Fi 6 - desktop
Want to build a whole-home Wi-Fi? Archer AX73 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
| Product Description | TP-Link Archer AX73 - V1 - wireless router - Wi-Fi 6 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, FTP, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol | IGMP, static IP routing |
| Features | NAT support, IGMP snooping, SPI, DFS support, URL filtering, parental control, Access Point operational mode, firmware upgradable, ACL support, QoS, virtual server support, WPS, FTP server, static IP mode, port forwarding, reset button, Apple Time Machine compatible, port triggering, dynamic IP mode, IP-MAC binding, DHCP client, IGMP proxy, beamforming technology, dual band, router mode, Airtime Fairness, 4x4 MU-MIMO technology, DMZ support, PPTP server, OFDMA, OpenVPN server, IPTV support, WPS button |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Dimensions (WxDxH) | 27.25 cm x 14.72 cm x 4.92 cm |
| Weight | 1.49 kg |
| Manufacturer Warranty | 3-year warranty |
- TD SYNNEX Product Data Sheet - TP-Link Archer AX73 - V1 - wireless router - Wi-Fi 6 - desktop(ARCHER AX73).pdf
- User Manual - TP-Link Archer AX73 - V1 - wireless router - Wi-Fi 6 - desktop(ARCHER AX73).pdf
- Product Data Sheet / Brochure - TP-Link Archer AX73 - V1 - wireless router - Wi-Fi 6 - desktop(ARCHER AX73).pdf
Wi-Fi 6 upgrades everything
The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Warp speed for smooth 8K streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster? Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.
Extensive Wi-Fi coverage with advanced technology
Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-power FEM, 6x Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Connect 200+ devices
Easily handle dozens of devices streaming and gaming at the same time - OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.
Designed to be cool
The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm2 (25 inch2) of its top surface for improved heat dissipation, unleashing the whole machine's full power.
TP-Link Archer AX73 V1
Network cable
External power adapter
| Enclosure Type | Desktop
|
| Processor | 1.5 GHz
|
| Connectivity Technology | Wireless, wired
|
| Routing Protocol | IGMP, static IP routing
|
| Device Type | Wireless router - 4-port switch (integrated)
|
| Frequency Band | 2.4 GHz / 5 GHz
|
| Wi-Fi Rating | AX5400
|
| Network / Transport Protocol | PPTP, L2TP, PPPoE, FTP, DHCP, DDNS, IPv4, IPv6
|
| Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS
|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
|
| Features | NAT support, IGMP snooping, SPI, DFS support, URL filtering, parental control, Access Point operational mode, firmware upgradable, ACL support, QoS, virtual server support, WPS, FTP server, static IP mode, port forwarding, reset button, Apple Time Machine compatible, port triggering, dynamic IP mode, IP-MAC binding, DHCP client, IGMP proxy, beamforming technology, dual band, router mode, Airtime Fairness, 4x4 MU-MIMO technology, DMZ support, PPTP server, OFDMA, OpenVPN server, IPTV support, WPS button
|
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.0: 1 x
|
| Service & Support | Limited warranty - 3 years
|
| Cables Included | 1 x network cable
|
| Power Device | External power adapter
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Weight | 1.49 kg
|
| Height | 4.92 cm
|
| Width | 27.25 cm
|
| Depth | 14.72 cm
|
| Antenna Qty | 6
|
| Aerial | External integrated
|
| Line Coding Format | OFDMA
|
