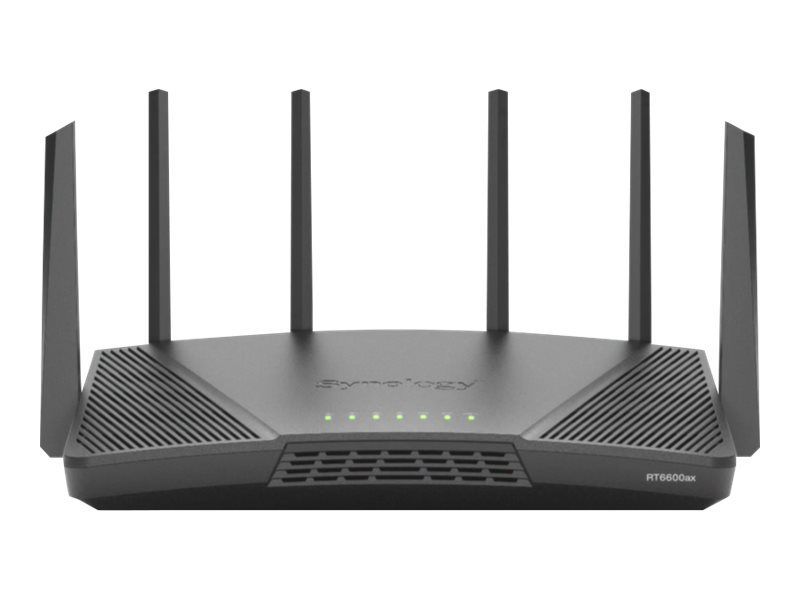

Synology RT6600AX - wireless router - Wi-Fi 6 - desktop
- English
Built around the Wi-Fi 6 standard, the RT6600AX tri-band router can deliver up to 6.6 Gbps in combined wireless throughput. The three radios work in tandem with the configurable 2.5GbE WAN/LAN port to ensure the maximum connection speed for each device. Powered by the constantly evolving Synology Router Manager operating system, the RT6600AX is designed to make securing and managing your network simple.
| Product Description | Synology RT6600AX - wireless router - Wi-Fi 6 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Performance | Maximum data rate (2.4 GHz): 600 Mbps ¦ Maximum data rate (5 GHz Low Band): 1200 Mbps ¦ Maximum data rate (5 GHz High Band): 4800 Mbps |
| Capacity | Maximum number of VLANs: 5 |
| Network / Transport Protocol | PPTP, L2TP, FTP, DHCP, DDNS, FTPS |
| Features | WOL, Syslog support, dynamic DNS server, VPN passthrough, QoS, DHCP server, port forwarding, 2T2R MIMO technology, port triggering, 4T4R MIMO technology, DoS protection, dynamic DNS client, L2TP support, PPTP client, PPTP server, OpenVPN client, OpenVPN server, WPS button |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 32 cm x 17.5 cm x 20 cm |
| Manufacturer Warranty | 2-year warranty |
Supercharged performance
Expanded 5. 9 GHz spectrum support enables additional high-speed 80 and 160 MHz channels.
Built for fast networking
2. 5GbE port enables support for the fastest ISPs and can be configured as a LAN port.
Secure network foundation
Create and define up to 5 separate networks to segregate and contain vulnerable devices.
Granular management tools
Parental controls, web filtering, traffic control, and threat prevention put you in control over your network.
Simple remote access
Comprehensive VPN server solution with remote desktop and site-to-site tunneling provides flexible and secure remote connectivity.
| Enclosure Type | Desktop
|
| Connectivity Technology | Wireless, wired
|
| RAM | 1 GB DDR3 SDRAM
|
| Processor | 1 x 1.8 GHz
|
| Device Type | Wireless router - 4-port switch (integrated)
|
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands)
|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
|
| Performance | Maximum data rate (2.4 GHz): 600 Mbps
Maximum data rate (5 GHz Low Band): 1200 Mbps
Maximum data rate (5 GHz High Band): 4800 Mbps
|
| Capacity | Maximum number of VLANs: 5
|
| Network / Transport Protocol | PPTP, L2TP, FTP, DHCP, DDNS, FTPS
|
| Encryption Algorithm | WPA, WPA-Enterprise, WPA2-Enterprise, WPS2, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, VCCI, BSMI, JATE, FCC, RoHS, TELEC, NCC, iDA, RCM, UKCA
|
| Status Indicators | Status, WAN, Wi-Fi
|
| Features | WOL, Syslog support, dynamic DNS server, VPN passthrough, QoS, DHCP server, port forwarding, 2T2R MIMO technology, port triggering, 4T4R MIMO technology, DoS protection, dynamic DNS client, L2TP support, PPTP client, PPTP server, OpenVPN client, OpenVPN server, WPS button
|
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.2 Gen 1: 1 x
WAN / LAN: 1 x 2.5GBase-T - RJ-45
|
| Service & Support | Limited warranty - 2 years
|
| Cables Included | 1 x network cable
|
| Power Device | External power adapter
|
| Voltage Required | AC 100-240 V (50/60 Hz)
|
| Max Operating Temperature | 40 °C
|
| Min Operating Temperature | 5 °C
|
| Humidity Range Operating | 8 - 80% (non-condensing)
|
| Height | 20 cm
|
| Depth | 17.5 cm
|
| Width | 32 cm
|
| Antenna Qty | 6
|
| Directivity | Omni-directional
|
