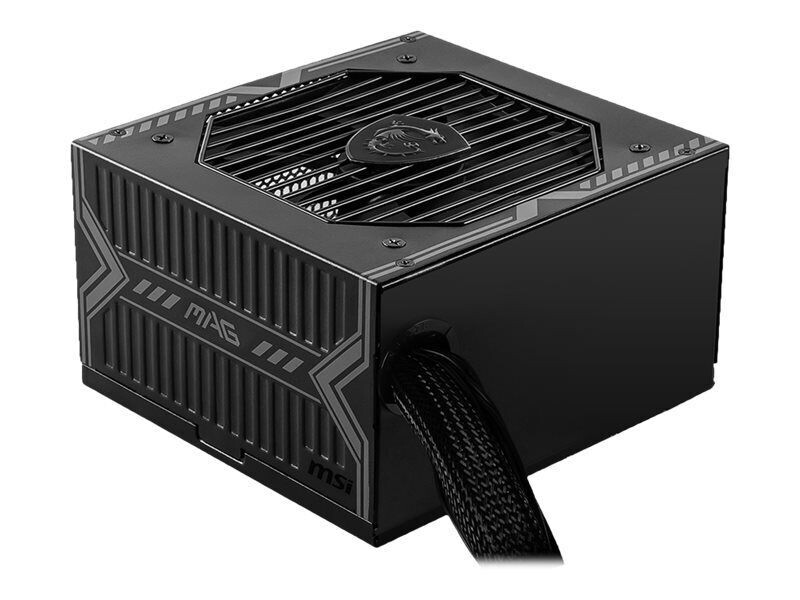

MSI MAG A650BN UK PSU '650W, 80 PLUS BRONZE CERTIFIED
PRODUCT FEATURES MSI MAG A650BN UK PSU '650W, 80 PLUS BRONZE CERTIFIED, 12V SINGLE-RAIL, DC-TO-DC CIRCUIT, 120MM FAN, NON-MODULAR, SLEEVED CABLES, ATX POWER SUPPLY UNIT, UK POWERCORD, BLACK'
- MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
PRODUCTS DESCRIPTION MSI 306-7ZP2B11-CE0
MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings. 80 PLUS BRONZE CERTIFIED The efficiency of your power supply directly influences your system s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency. 120MM LOW NOISE FAN The fan s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation. DC TO DC CIRCUIT DESIGN Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power. COMPREHENSIVE CIRCUIT PROTECTION Supports OCP, OVP, SCP, OPP, OTP protectionmechanisms and provides comprehensive protection. 5-YEAR LIMITED WARRANTY The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
| Power | |
| Total power: | 650 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Maximum input current (@110V): | 10 A |
| Maximum input current (@220V): | 5 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 110 W |
| Combined power (+12V): | 648 W |
| Combined power (+5V): | 110 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 54 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 20 A |
| Efficiency: | 85% |
| Power protection features: | Over current, Over power, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| Motherboard power cable length: | 60 cm |
| Number of SATA power connectors: | 5 |
| EPS power connector (4+4 pin): |  |
| PCI Express power connectors (6+2 pin): | 2 |
| CPU power connector (4+4 pin): | |
| ATX Power connector (24-pin): |  |
| ATX power connector (20+4 pin): | |
| Floppy disk drive connector: | |
| Cabling type: | Modular |
| Performance | |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS Bronze |
| Design | |
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| On/off switch: | |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
