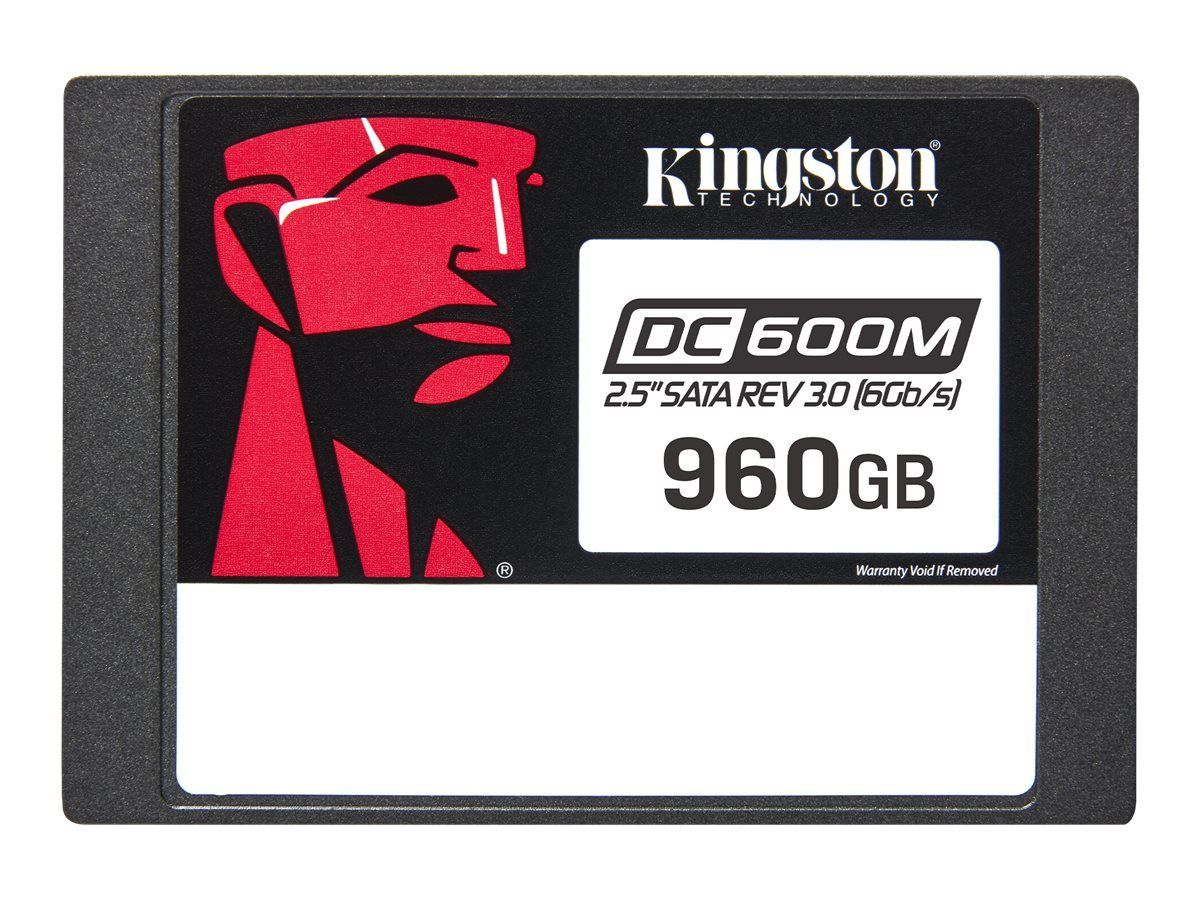

Kingston DC600M - SSD - Mixed Use - 960 GB - SATA 6Gb/s
Kingston's DC600M SSD is a 4th generation data center SATA 3.0, speedy SSD with 3D TLC NAND intended for "mixed use" workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialize on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers, and cloud service providers.
| Product Description | Kingston DC600M - SSD - Mixed Use - 960 GB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 960 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Drive Class | Mixed Use |
| Features | High Quality of Service (QoS), Power Loss Protection (PLP), Dynamic and Static Wear Leveling, S.M.A.R.T health information support, Hot-Plug Support |
| Dimensions (WxDxH) | 69.9 mm x 100 mm x 7 mm |
| Weight | 92.34 g |
| Manufacturer Warranty | 5-year warranty |
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent Quality of Service (QoS)
Optimized performance predictability to hit Service-level agreements (SLAs).
| Form Factor | 2.5"
|
| Height | 7 mm
|
| Depth | 100 mm
|
| Capacity | 960 GB
|
| Width | 69.9 mm
|
| Device Type | Solid state drive - internal
|
| Interface | SATA 6Gb/s
|
| Weight | 92.34 g
|
| NAND Flash Memory Type | 3D triple-level cell (TLC)
|
| Features | High Quality of Service (QoS), Power Loss Protection (PLP), Dynamic and Static Wear Leveling, S.M.A.R.T health information support, Hot-Plug Support
|
| Service & Support | Limited warranty - 5 years
Technical support - 5 years
|
| Power Consumption | 1.45 Watt (average)
1.3 Watt (idle)
1.6 Watt (max read)
3.6 Watt (max write)
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 70 °C
|
| Min Storage Temperature | -40 °C
|
| Max Storage Temperature | 85 °C
|
| Vibration Tolerance (operating) | 2.17 g @ 7-800 Hz
|
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz
|
| Drive Transfer Rate | 600 MBps (external)
|
| Maximum 4KB Random Write | 65000 IOPS
|
| Internal Data Rate | 560 MBps (read) / 530 MBps (write)
|
| Maximum 4KB Random Read | 94000 IOPS
|
| Average Latency | 200 μs
|
| Drive Writes Per Day (DWPD) | 1.66
|
| SSD Endurance | 1752 TB
|
| Drive Class | Mixed Use
|
| MTBF | 2,000,000 hours
|
| Compatible Bay | 2.5"
|
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA
|
