Product Description

• English

Connect your business with this highly efficient standalone network scanner. It's the intelligent choice for business document management,offering the option to scan to separate locations - departments or individual accounts - at the touch of a button,allowing you to capture,convert and distribute scanned information within your organization.

Main Specification

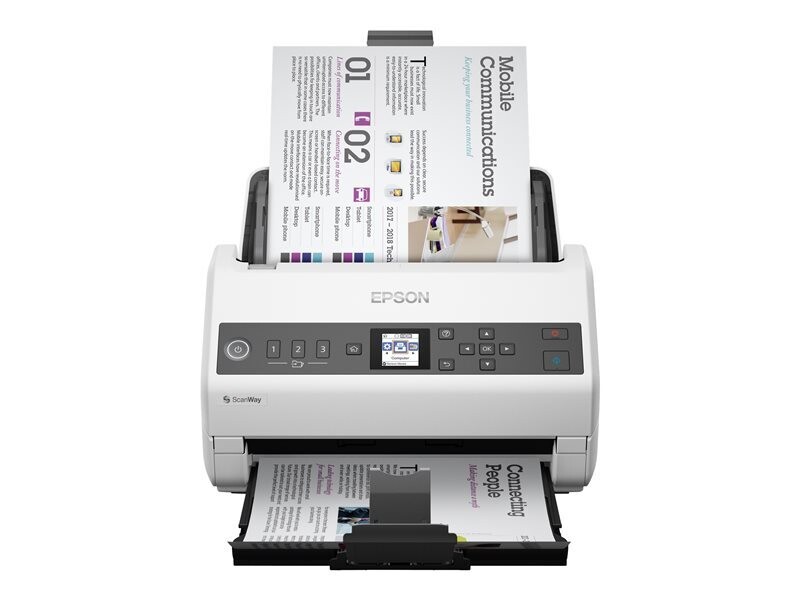

Product Description	Epson WorkForce DS-730N - document scanner - desktop - USB 2.0,Gigabit LAN
Device Type	Document scanner - desktop
Interface Type	USB 2.0,Gigabit LAN
Scanning Sensor Type	Contact Image Sensor (CIS)
Light Source	LED
Additional Functions	Scan to network share,scan to server,scan to FTP,scan to email
Max Supported Document Size	Legal (216 x 356 mm)/A4 (210 x 297 mm)
Input Type	Colour
Grayscale / Color Depth	10-bit grey / 30-bit colour
Grayscale / Color Depth (External)	8-bit (256 grey levels) / 24-bit (16.7 million colours)
Optical Resolution	600 dpi x 600 dpi
Max Document Scan Speed	40 ppm (mono) / 40 ppm (colour)
Max Document Size	215.9 mm x 6096 mm
Automatic Duplexing	Yes
Supported Document Type	Plain paper
Document Feeder Type	Automatic
Document Storage Capacity	100 sheets
Duty Cycle	4500 scans per day
Power	AC 100 - 240 V (50 - 60 Hz)
System Requirements	Microsoft Windows XP Professional x64 Edition,Microsoft Windows Server 2008 R2,Microsoft Windows Vista (32/64 bits),Apple MacOS X 10.6.x or later,Microsoft Windows Server 2008 (32/64-bits),Microsoft Windows Server 2003 (32/64-bits),Microsoft Windows Server 2012 x64 Edition,Microsoft Windows Server 2012 R2,Windows 10,Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits)
Dimensions (WxDxH)	29.6 cm x 16.9 cm x 16.7 cm
Weight	3.6 kg
Manufacturer Warranty	1-year warranty

Product Features

• Sharing made easy
• With limited office space,reducing the number of dedicated devices is crucial. With an easy-to-use control panel with built-in 1.44"color LCD display,you can choose the correct job and send documents to the correct destination without delay,making digital files available across departments and other agencies. Scan to email,folder,FTP,SFTP,cloud services or Microsoft applications at the touch of a button.
• High performance
• Thanks to a high-capacity 100-sheet ADF,user intervention is reduced,allowing you to capture high volumes of documents in one go. With double-sided scan speeds of up to 40 ppm/80 ipm,bulk jobs can be captured quickly and easily as a single file.
• Intelligent features
• Take control with a range of intelligent features,including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed,without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
• Quick send buttons
• Thanks to WebConfig,you can create job presets and assign them to one of three quick send buttons,without the need for a PC or server. Multiple email addresses can be assigned to a single job. Scan once and send to several different contacts. Up to 300 separate contacts can be saved.

What is in the box?

• Epson WorkForce DS-730N
• USB cable
• External power adapter
• EPSON Event Manager,EPSON Document Capture Pro,EPSON Document Capture Pro Server,EPSON Scan 2,Epson Device Admin

Extended Specification collapse

General
Type	Document scanner - desktop
Interface Type	USB 2.0,Gigabit LAN
Additional Functions	Scan to network share,scan to server,scan to FTP,scan to email
Max Supported Document Size	Legal (216 x 356 mm)/A4 (210 x 297 mm)

Scanner
Input Type	Colour
Grayscale Depth	10-bit grey
Grayscale Depth (External)	8-bit (256 grey levels)
Colour Depth	30-bit colour
Colour Depth (External)	24-bit (16.7 million colours)
Optical Resolution	600 dpi x 600 dpi
Scan Mode	Single-pass
Automatic Duplexing	Yes
Scanning Sensor Type	Contact Image Sensor (CIS)
Bulb / Light Source Type	LED
Max Document Scan Speed B/W	40 ppm
Max Document Scan Speed Colour	40 ppm
Duty Cycle	4500 scans per day
Scanner Speed Details	40 ppm - black & white - A4 - 300 dpi 80 ipm - duplex - black & white - A4 - 300 dpi 40 ppm - colour - A4 - 300 dpi 80 ipm - duplex - colour - A4 - 300 dpi 40 ppm - black & white - A4 - 200 dpi 80 ipm - duplex - black & white - A4 - 200 dpi 40 ppm - colour - A4 - 200 dpi 80 ipm - duplex - colour - A4 - 200 dpi
Scanner Features	Barcode Detection,Text Enhancement,Punch Hole Removal,A3 stitching,1.44" LCD screen,auto image rotation,Advanced Colour Dropout,edge fill
Scan File Formats	JPEG,PNG,TIFF,PDF,Multi-TIFF,XLSX,PPTX,DOCX
Compliant Standards	TWAIN,ISIS,WIA

Media Handling
Max Document Size	215.9 mm x 6096 mm
Supported Document Type	Plain paper
Document Feeder Type	Automatic
Document Storage Capacity	100 sheets

Expansion / Connectivity
Interfaces	USB 2.0 - Type B Gigabit LAN

Miscellaneous
Cables Included	1 x USB cable

Power
Power Device	External power adapter
Voltage Required	AC 100 - 240 V (50 - 60 Hz)
Power Consumption Operational (Standby)	14 Watt
Power Consumption Stand by	5.9 Watt
Power Consumption Sleep	1.5 Watt

Software / System Requirements
Software Included	EPSON Event Manager,EPSON Document Capture Pro,EPSON Document Capture Pro Server,EPSON Scan 2,Epson Device Admin
OS Required	Microsoft Windows XP Professional x64 Edition,Microsoft Windows Server 2008 R2,Microsoft Windows Vista (32/64 bits),Apple MacOS X 10.6.x or later,Microsoft Windows Server 2008 (32/64-bits),Microsoft Windows Server 2003 (32/64-bits),Microsoft Windows Server 2012 x64 Edition,Microsoft Windows Server 2012 R2,Windows 10,Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits)

Dimensions &Weight
Width	29.6 cm
Depth	16.9 cm
Height	16.7 cm
Weight	3.6 kg

Dimensions &Weight (Shipping)
Shipping Width	26.5 cm
Shipping Depth	37.5 cm
Shipping Height	33 cm
Shipping Weight	4.89 kg

Manufacturer Warranty
Service &Support	Limited warranty - 1 year - on-site

Environmental Parameters
Min Operating Temperature	5 °C
Max Operating Temperature	35 °C
Humidity Range Operating	15 - 85% (non-condensing)
